An analogue is a controlled substitution
An Earth analogue test substitutes an accessible condition for part of an inaccessible environment. A vacuum chamber can reproduce low pressure and thermal cycling. A vibration table can reproduce a specified mechanical load. A clinostat may alter the direction of a gravity stimulus for some biological questions. None of these reproduces “space” as a single condition.
The test is useful when the substituted environment preserves the physics that control the decision. Its result becomes misleading when it is applied to conditions the test did not reproduce.
What Earth testing does well
Earth tests can identify manufacturing errors, leaks, sensor faults, control problems, material incompatibilities, and repeatability issues before scarce reduced-gravity or flight opportunities are used. They also allow more runs, more instrumentation, and faster design changes.
For environmental qualification, specialized facilities isolate particular stresses. ESA’s Phenix chamber exposes test articles to vacuum and repeated thermal extremes. NASA Ames lists thermal-vacuum, vibration, shock, pressure, and acceleration testing in its Engineering Evaluation Laboratory.
Those tests can produce strong results for the conditions they reproduce. They do not automatically show how the same hardware will behave under a different gravity level.
What changes when gravity is the variable

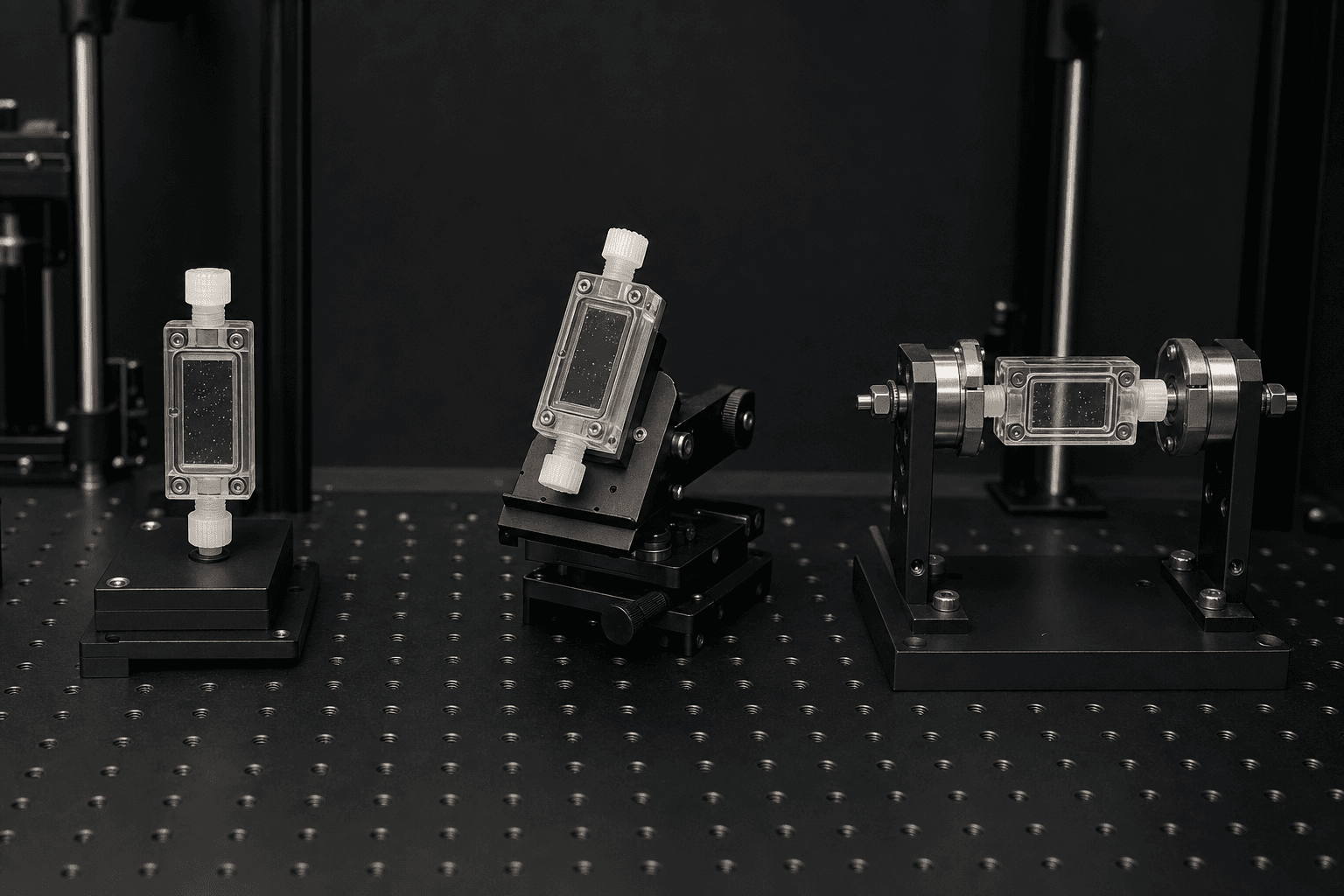

For a fluid system, a benchtop Earth test may be excellent for checking dimensions, seals, sensor timing, forced-flow components, and data acquisition. It may be a poor predictor of passive phase separation or buoyancy-driven circulation in microgravity.
Scaling analysis can help. Dimensionless groups such as Bond, Reynolds, Weber, and Capillary numbers compare competing effects. If an analogue matches the important groups and boundary conditions, it may reproduce the relevant behavior even when the overall environment differs. Matching one group while ignoring another can produce a false resemblance.
The burden is therefore to state which physical relationships are preserved, which are distorted, and why the test remains informative.
Short-duration reduced-gravity platforms
Drop towers and parabolic flights bridge part of the gap. ESA reports that the ZARM tower provides about 4.74 seconds of near-weightlessness, with a catapult mode that can approximately double the duration (ESA, Drop towers). ESA describes parabolic flights as offering about 20 seconds of microgravity per parabola, bounded by increased-gravity phases, and notes that the aircraft can also fly lunar- and Martian-gravity profiles (ESA, Parabolic flights).
These platforms are valuable because they provide real reduced gravity. Their limits include short duration, transient accelerations, hardware constraints, and a small number of runs compared with a benchtop setup. A process whose timescale is minutes or hours may not reach its relevant state during a drop or parabola.
Match the test to the decision
NASA’s Standard for Models and Simulations covers verification, validation, sources of error, sensitivity analysis, operating limits, and reporting. The useful question is whether the available test data supports one specific engineering decision.
The same rule applies to physical analogues. A successful Earth test supports the questions its setup and measurements can answer. Differences that were not tested still matter.
Ground Blue’s testing path
Ground Blue connects several kinds of checks:
- analytical reference cases;
- conservation and numerical checks;
- repeatable Earth prototypes;
- comparison with public experimental records;
- short-duration reduced-gravity testing when the timescale fits;
- longer-duration or flight testing after earlier results narrow the risk.
Each step records what worked, what failed, and what changed. The hardware problem must have a measurable outcome and a timescale that fits each test platform.
Sources
- ESA, Phenix Thermal Vacuum Chamber.
- NASA Ames, Engineering Evaluation Laboratory.
- ESA, Drop towers.
- ESA, Parabolic flights.
- NASA, NASA-STD-7009A: Standard for Models and Simulations.
